Haven’t had much time lately but did make some progress

It fits

It came

Wastegate spring options
What are the limitations of the intake boost hose connections at the AAN throttle body? I don’t think the turbo will blow my motor. It’s a PT4831 if I remember correctly. Is 17.5 psi of boost going to cause more issues than it’s worth? Or play it safe with 13.5 psi?

Flowmaster super 44 3” muffler under the trunk
Biggest one they had that fits.

I think I’m going to put this under the passenger side rear seat. Attempting to quiet it down on top of the Flowmaster under the trunk

Those -10 push lock hose is too close to the exhaust
Gonna have to make them hard lines up to the bellhousing

There’s room for a muffler under the passenger side rear seat
I’m debating about making one with a little copper and/or other crazy metals to get a different exhaust tone. Already going to have a Flowmaster under the trunk

I bypassed going up and around the diff on mine. It is now the first thing that hits anything. I plan on redoing mine to snake around. Your image looks like what I had I mind. 45deg over the CV. I kinda gave up fitting it correctly. Even the same box of amazon pipe but in 2.5 :D Hanger situation ...

there’s only 3 cat back exhaust mounting points
I’m gonna have to fix that. There’s not much room with a 3” pipe in a 2” ditch. I’m debating about just bolting the flex pipe back straight to the car with rubber isolators

1.9 bar / 13.5 psi or 2.2 bar / 17.5 psi?
That is the question
If I was to guess the intake hose at the throttle body popping off is its weakest link.
Bonding silicone to aluminum:
Permabond
Polyolefin primer
Permabond cyanoacrylate 105

Got the downpipes all welded up. Had to take a little off the subframe pinch weld. Doing the heat shields and secondary support bracket now

Let’s see if 16ga 304ss amazon stuff holds up for the flex pipe back

I’ve got 3/4” clearance from the drive axle boot. Heat wrap and a custom heat shield

1 3/4 roll cage tool and a serpentine belt alignment tool to merge the wastegate into the downpipe

Here’s progress so far. No oval tubing. Can’t get it to fit do you all run 3” tubing? I’m worried about ground clearance and melting things?

I shortened the downpipe a little to fit this
I hope haha. Wish me luck. 3” oval tubing. More ground clearance and will leave more room from melting the axle boot

Hello again. It’s been a long time. I decided to keep it. Too sentimental. The piston rings went. I’m going to be able to get a short block from Marc in about 6 months. Now that I know which turbine housing I’m going to use I can make the exhaust and intake as well.


Glad you kept it! I've ...

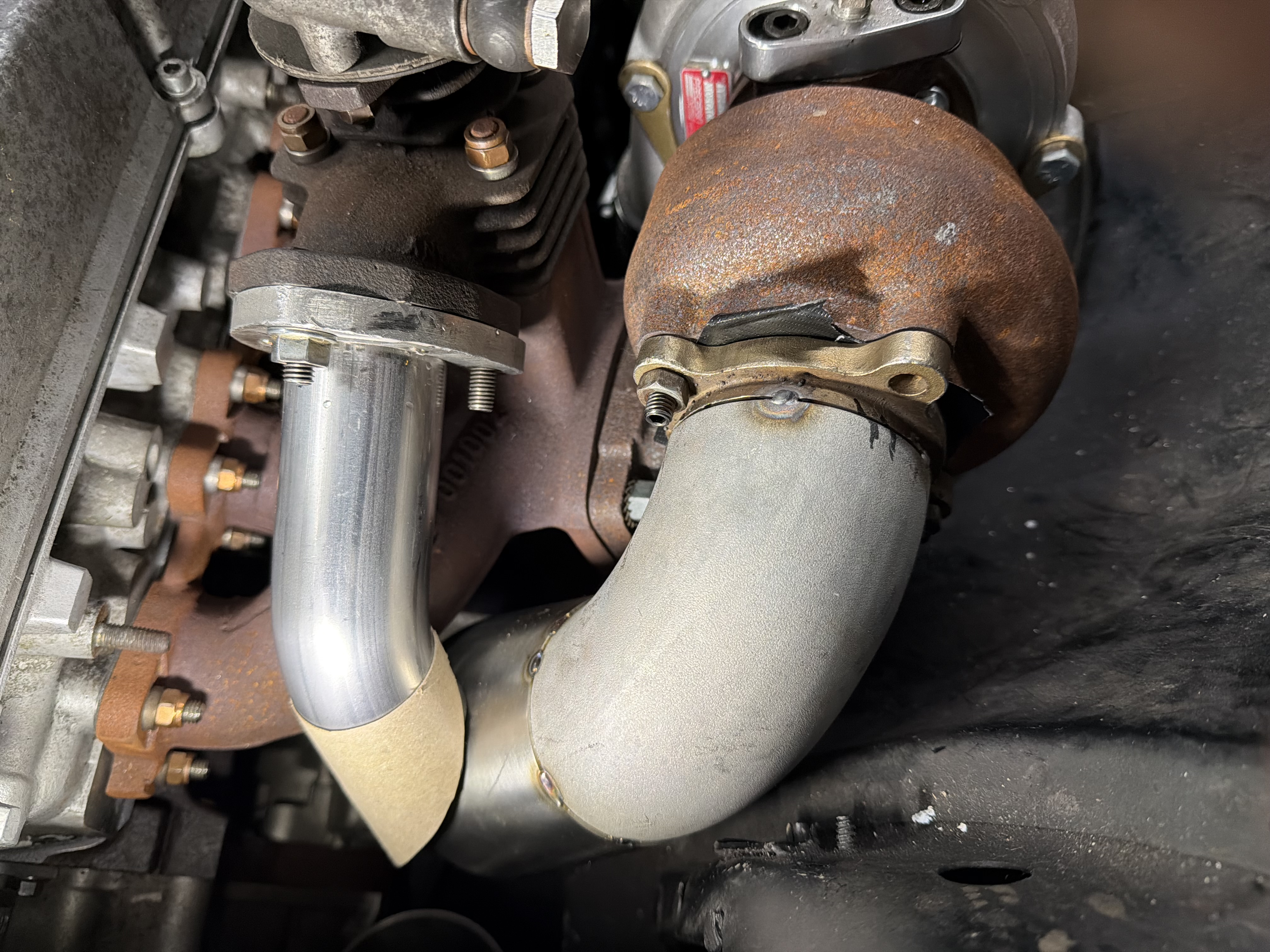

It fits

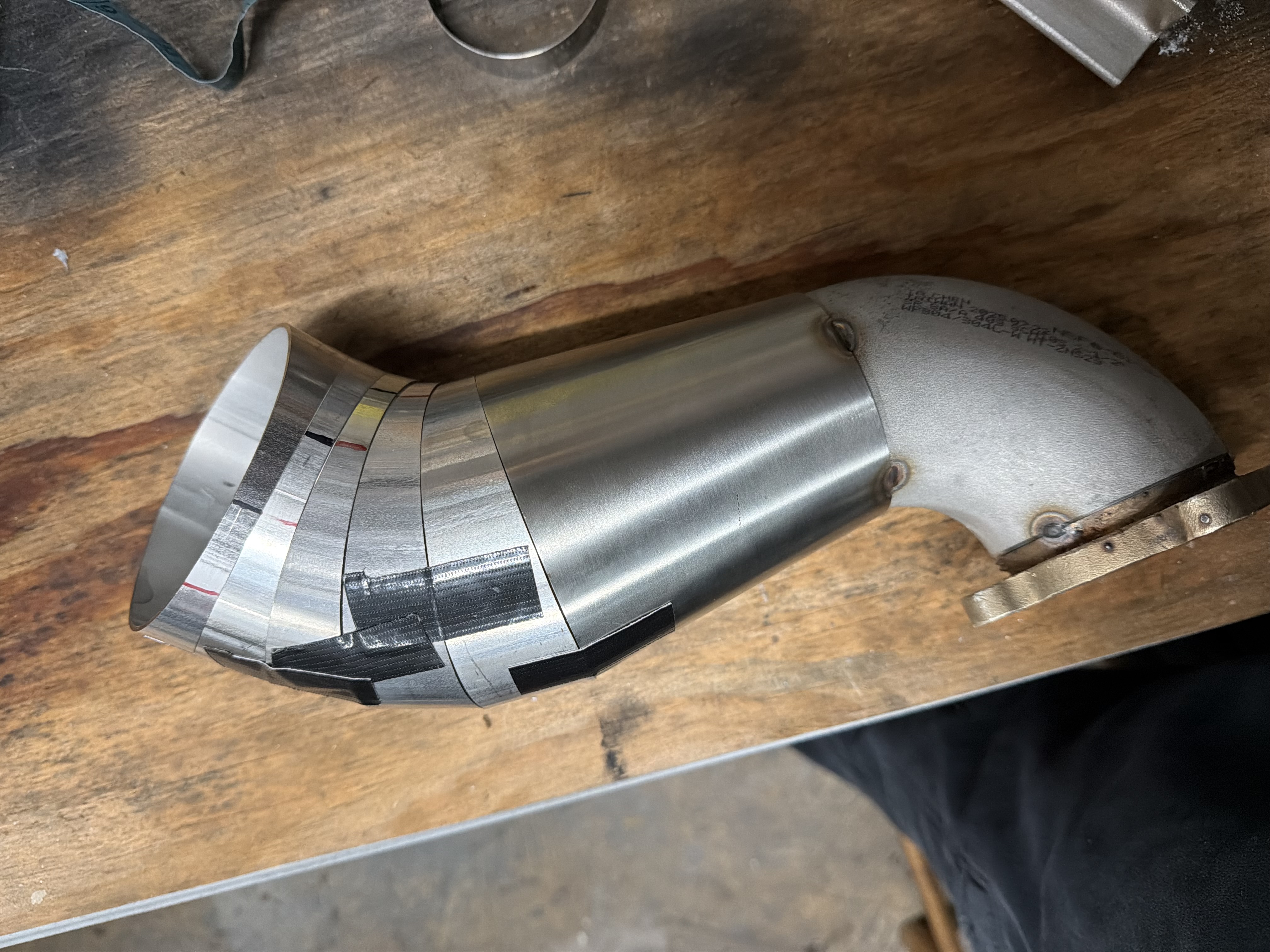

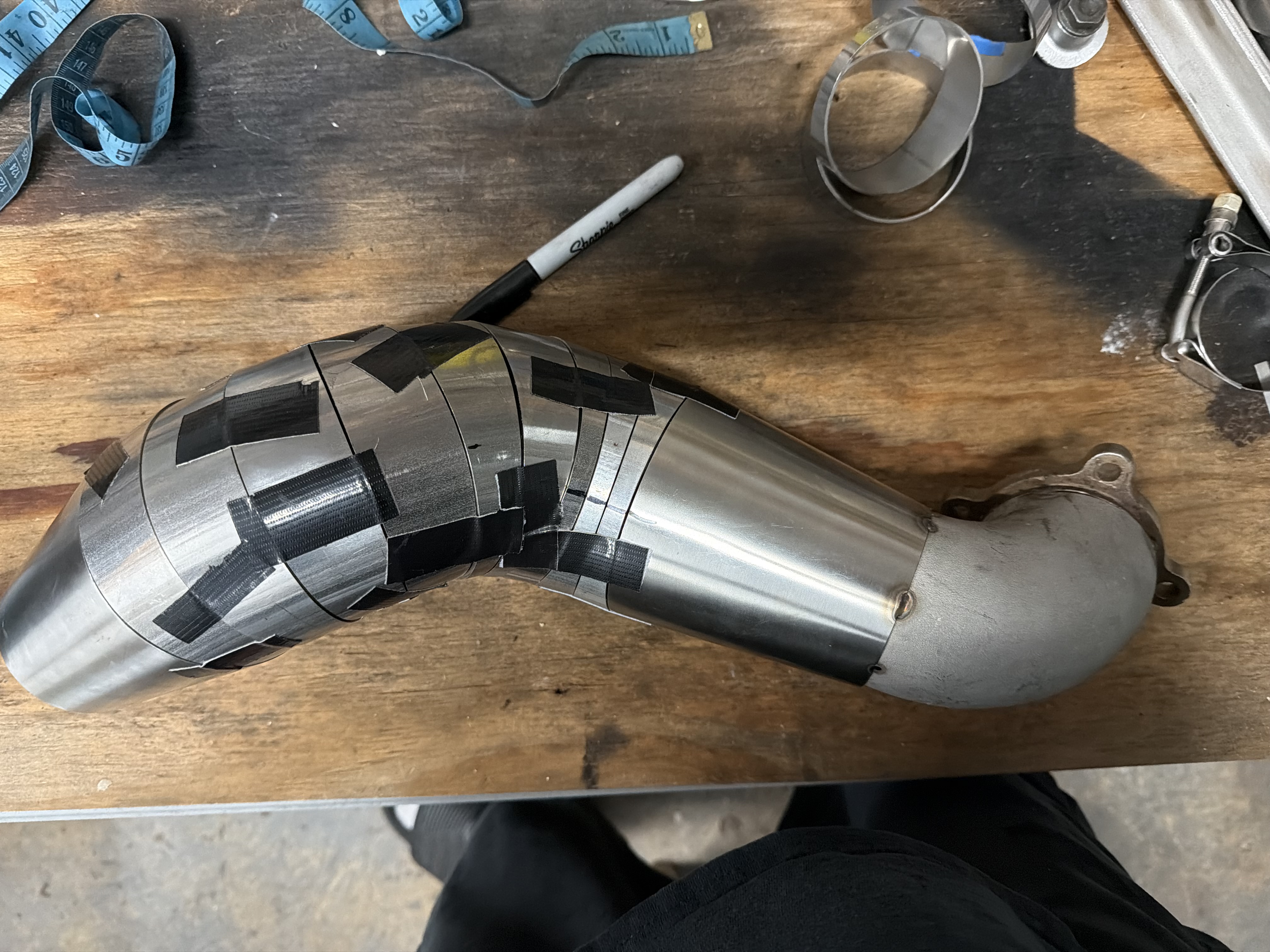

Making a downpipe is much more difficult than I thought. A new found respect for fabricators. Here’s what I got so far.
